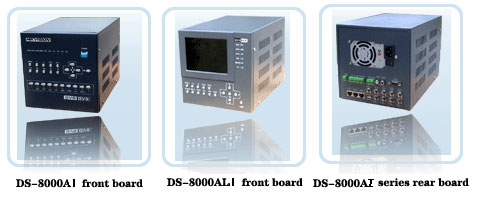

| HIKVISION DS-8000AI/ALI series network disk video recorder is an excellent digital product special for ATM/POS surveillance. It uses the most advanced technology in information industry such as video/audio encoding/decoding , hard disk record and TCP/IP . It has both features of digital video/audio recorder(DVR) and digital video/audio server(DVS) . It can work stand-alone or be used to build a powerful surveillance network.
DS-800AI/ALI series have the function to compress the video signal and audio signal simultaneously into H.264 hardware compression standard; to transmit the compression bit rate through network; to real-time video and audio preview; bi-directional voice communication and support multilingual etc.
Compression Functions:
1. Every video input channel can be real-time hardware compressed independently with 25F/S(PAL) or 30F/S(NTSC). Video is compressed using H.264 standard, and it supports not only variable bit rate but also variable frame rate. When choosing video image quality, you can also limit the bit rate of the compression code.
2. Support resolution:PAL:4CIF (704*576), DCIF(528*384),2CIF(704*288), CIF（352*288）, QCIF（176*144）;NTSC: 4CIF (704*480), DCIF(528*320), 2CIF(704*240), CIF（352*240）, QCIF（176*120）;
3. Every audio input channel can be compressed independently , using OggVorbis standard . The output bitrate is 16 kbps.
4. The output video and audio stream can be complexed to generate the mixed H.264 stream . Video and audio coincide with each other from beginning to end when mixed stream is played back . Only Video stream is also available.
5. Support water mark
Local Operation:
1. Friendly user menu leads to simple and direct operation;
2. Support 5” LCD Screen (DS-8002AL);
3. Partial sensitive zone sheltering;
4. Playback 2 Channels simultaneously;
5. Inquiry playback by time, alarm or credit number;
6. Multiple play mode: fast, pause, slow, frame by frame;
7. Support local HDD and NAS, and cyclic-recording;
8. Support playback, network preview, record at the same time;
9. Support schedule record, alarm record, motion detect record. Stream can be recorded before trigged;
10. ATM machine name, credit card number, date & time, transaction type can be overlapped on the video image;
11. Support USB flash disk, USB Hard disk, USB CDRW for backup;
12. Automatically recovery from exception leads to high reliability. Alarm is generated if recovery tries exceeds.
Network function: 1. Support PPPoE protocol; 2. Support network audio/video preview;
3. Support remote inquiry, download files, remote playback through network;
4. Embedded Web server allows browser to remote preview;
5. Support remote Pan-Tile-Zoom control;
6. Support parameters remote configuration;
7. Support firmware remote upgraded;
8. Voice communication with surveillance center can be done through network;
9. Alarm can be transmitted to surveillance center through network;
10. Support narrow-band transmission (PSTN).
Specification:
|
Video Compression |
H.264 |
|
Preview Resolution |
PAL: 704*576
NTSC: 704*480 |
|
Compress Resolution |
DCIF, 2CIF, CIF, QCIF |
|
Video Input |
3 Channels, BNC (1.0Vp-p，75Ω) |
|
Video Output |
1 Channel, BNC (1.0Vp-p，75Ω)) |
|
Frame rate |
PAL：1/16—25 F/S; NTSC：1/16—30 F/S |
|
Stream Type |
Mixed stream or Video Stream |
|
Bit rate |
16Kbps～2Mbps (Self definition) |
|
Audio Input |
3 Channels, BNC (Linear Electrical Level, Resistance:1000Ω), SNR > 83DB |
|
Audio Output |
1 Channel, BNC (Linear Electrical Level) |
|
Audio Compression |
OggVorbis |
|
Audio bitrate |
16Kbps |
|
Voice Audio input |
1 Channel, BNC (Linear Electrical Level，Resistance:1kΩ) |
|
Communication Interface |
1 RJ45 10M/100M UTP Network，1 RJ45 for RS232, 1 RJ45 for RS485 |
|
HDD IDE Interface |
2 IDE, support 4 HDD, 2 HDD can be installed |
|
USB Interface |
1, support USB1.1; Support USB flash disk, USB HDD, USB CDR/W |
|
VGA Interface |
1, Support 800×600/60Hz，800×600/75Hz，1024×768/60Hz |
|
Switch Alarm Input |
4 Ports
Port1 has 3 pins: Pin1 provides DC+12V/1A for the sensor; Pin 2 is GND.
the other 3 ports are switch input. |
|
Switch Alarm Output |
2 Ports
Pin1 of 1st port provides DC+12V/1A, Pin2 is GND;
The 2nd port is switch output. |
|
DC output |
DC+12V/1A |
|
Power Supply |
90--135VAC or 180--265VAC, 47--63 Hz |
|
Power Consumption |
26W(Without HDD) |
|
Working Temperature |
-10℃--＋50℃ |
|
Working Humidity |
10％--90％ |
|
Size |
180mm*180mm*280mm) |
|
Weight |
5Kg (DS-8002AI without HDD) |
|
|
