HIKVISION DS-8000HCI series network disk video recorder is an excellent digital surveillance product , using the most advanced technology in information industry such as video/audio encoding/decoding , hard disk record and TCP/IP . It has both features of digital video/audio recorder(DVR) and digital video/audio server(DVS) . It can work stand-alone or be used to build a powerful surveillance network, widely used in bank, telecommunication, transportation, factories, warehouse, irrigation, ect.

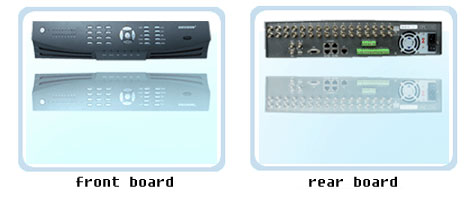

Physical description
Max 16 video in (PAL , NTSC)
Max 16 audio in (linear in)
1 video out (PAL , NTSC)
1 audio out
1 line in (for voice talk)
1 10/100M Ethernet
4 IDE , support max 8 hard disks of max 2000GB each
8 or 16 alarm in
4 alarm out
1 RS-485 for keyboard , 1 RS-485 for PTZ control
1 RS-232
1 USB
1 VGA
19-inch case (450mm*450mm*95mm Function :
HIKVISION DS-8000HCI series network disk video recorder adopts high performance embedded real-time multitask operating system(RTOS) and embedded CPU to perfectly implement all the functions needed to build a surveillance system . Burning all the software in FLASH makes system more steady and reliable .
Compression function :
Support max 16 channels video in . Each channel can be compressed independently in 25F/S(PAL) or 30F/S(NTSC), using H.264 algorithm . Both variable bitrate and variable frame rate are supported .
Support max 16 channels audio in. Each channel can be compressed independently , using OggVorbis standard . The output bitrate is 16 kbps .
The output video and audio stream can be complexed to generate the complexed H.264 stream . Video and audio coincide with each other from beginning to end when complexed stream is played back . Only Video stream is also available . Support following resolution:
AL:4CIF (704*576), DCIF(528*384), 2CIF(704*288),CIF(352*288), QCIF(176*144);
NTSC: 4CIF (704*480), DCIF(528*320), 2CIF(704*240),CIF(352*240), QCIF(176*120)；
Support multi-zone motion detection .
Support position configurable OSD & LOGO .
Support water mark .
|
|
